STANDARD CAPACITORS
Compressed gas insulated high precision capacitors for C/tan delta measurement, or very accurate voltage measurement
APPLICATION
Gas insulated standard capacitors are used for high voltage measurements of capacitance and loss factor, as a reference normal. They can also be used as a very accurate HV section of a capacitive voltage divider. The standard version is for indoor use, however a special outdoor design is available upon request. Mohaupt standard capacitors can be used in combination with any kind of modern loss factor measurement equipment.
BENEFITS
- Extremely low loss factor and high stability of capacitance
- Unaffected by external field influences (proximity effects)
- Excellent voltage performance even under high humidity conditions
- Calibration at certified laboratory available upon request

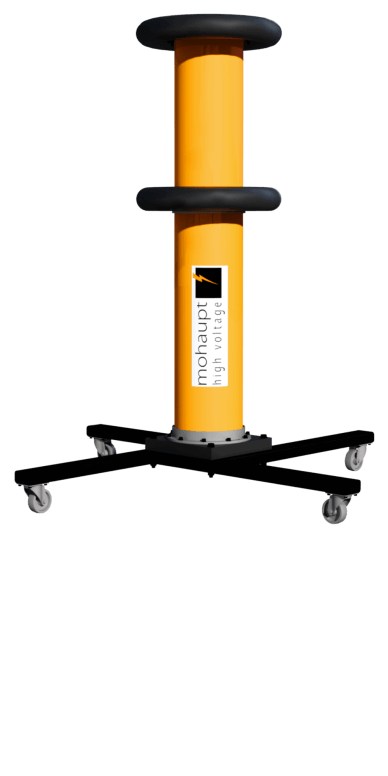

OVERVIEW
TECHNICAL DATA
Type
Max. Voltage (kV)
Capacitance (pF)
Loss factor
Partial discharge level at Un (pC)
Impulse test voltage 1.2/50 µs (kV)
NK 200
200
100
< 1 x 10-5
<2
400
NK 300
300
50
< 1 x 10-5
<3
600
NK 400
400
50 ± 0.25
< 1 x 10-5
<3
800
NK 600
600
33.3 ± 0.2
< 1 x 10-5
<3
1200
NK 800
800
25
< 1 x 10-5
< 10
1600
NK 1000
1000
20
< 1 x 10-5
< 10
2000
NK 1200
1200
20
< 1 x 10-5
< 10
2400
